Mamdani Fuzzy Inference Method – Example

Mamdani fuzzy inference method we discussed in the previous article, is elaborated here with detailed examples.

Consider the following robot navigation example:

Example:

mamdani fuzzy inference method
Robot navigation problem

Consider that,

D: The distance from the robot to an object

θ: The angle of motion of an object with respect to the robot.

δ: Deviation with respect to D and θ

We assume the range of values of D is [0.1, …. 2.2] in meter and θ is [-90, … , 0, … 90]

Find the deviation of the robot from its position for distance D = 1.04 m and angle θ = 30o

Solution:

Database:

The database (DB) of the FLC is shown below:

Distance::

  • VN : Very Near
  • NR : Near
  • FR : Far
  • VFR : Very Far

Angle (angular direction (θ) and deviation (δ)):

  • LT : Left
  • AL : Ahead Left
  • A: Ahead
  • AR : Ahead Right
  • RT : Right

A graphical representation of the fuzzy membership function is shown here for both inputs (distance and direction) and one output (deviation).

database
Database for given fuzzy logic controller

Rule base:

The rule base is typically defined by the expert of the domain. For a given instance, we are considering following the rule base.

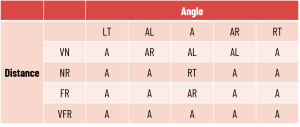

Rule base
Rule base

Fuzzy linguistic rule : If x is D and y is θ then z is δ

This rule base has 20 IF-THEN rules:

  • Rule 1: If (D is VN ) and (θ is LT) Then (δ is A)
  • Rule 2: If (D is VN ) and (θ is AL) Then (δ is AR)
  • .
  • .
  • .
  • Rule 20: If (D is VF ) and (θ is RT) Then (δ is A)

Fuzzification of inputs:

Given, D = 1.04 m and angle θ = 30o

For this input, we are to decide the deviation δ of the robot as output. First, we need to compute the fuzzy values of crisp inputs using the following fuzzification method.

fuzzification of distance
D = 1.04m
fuzzification of angle
θ = 300

As we can see in the above diagram, distance D = 1.04 is a member of two fuzzy sets called NR and FR.

Similarly, Angle θ = 300 is a member of two fuzzy sets called A and AR.

So we need to compute the membership value (i.e. fuzzified value) of both inputs in their corresponding fuzzy sets.

Let us find the membership value for D = 1.04 m in NR and FR fuzzy sets. We can easily find the membership value of any crisp input using a similar triangle rule, as shown below:

fuzzification
Membership value computation of D = 1.04 m in NR fuzzy set
fuzzification
Membership value computation of D = 1.04 m in FR fuzzy set

Similarly, μNR = 0.6571, μFR = 0.3429, μA = 0.3333, μAR = 0.6667

Fired Rules:

Out of 20 rules in the rule base, only four rules will fire.

With a given set of fuzzy variables, we have four different combinations of rules:

  • If Distance is NR AND Angle is A Then Deviation is RT
  • If Distance is NR AND Angle is AR Then Deviation is A
  • If Distance is FR AND Angle is A Then Deviation is AR
  • If Distance is FR AND Angle is AR Then Deviation is A

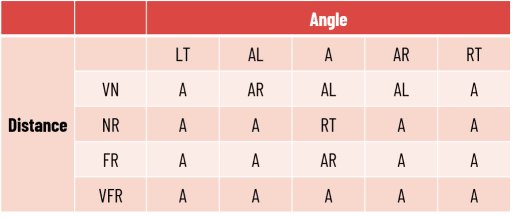

Fired rules are highlighted in the following rule base – which is the intersection of fuzzy sets of D and θ:

rule base for mamdani approach
Fired rules as the intersection of fuzzy sets of D and θ

Computing strength of fired rules:

As we know, μNR = 0.6571, μFR = 0.3429, μA = 0.3333, μAR = 0.6667. Strength (α values) of the fired rules:

α1 = min⁡(μNRA ) = min⁡(0.6571, 0.3333) = 0.3333

α2 = min⁡(μNRAR ) = min⁡(0.6571, 0.6667) = 0.6571

α1 = min⁡(μFRA ) = min⁡(0.3429, 0.3333) = 0.3333

α1 = min⁡(μFRAR ) = min⁡(0.3429, 0.6667) = 0.3429

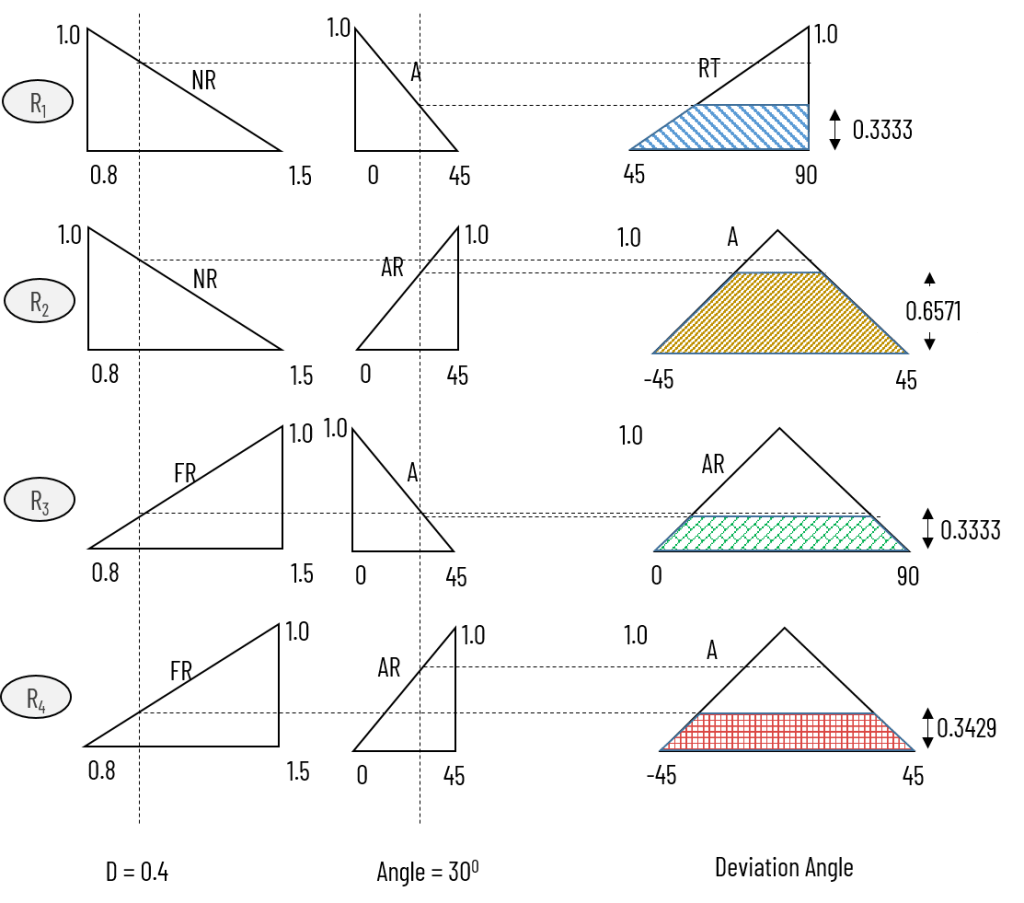

The strength of fired rules and their corresponding membership in output for each fuzzy rule is shown in the following figure.

mamdani fuzzy inference method
Computing strength of fired rules

Aggregation of fuzzy output functions:

To compute the final crisp value of deviation (δ) using Mamdani fuzzy inference method, we shall aggregate all fuzzy output functions on the same axis, as we did in defuzzification methods.

Aggregate fuzzy output function
Aggregated fuzzy output functions

We will apply various defuzzification methods to this aggregated output function to find the final crisp value.

Watch on YouTube: Mamdani Fuzzy Inference Method

mamdani fuzzy inference system

Defuzzification:

The equation to compute of some standard shapes is shown below:

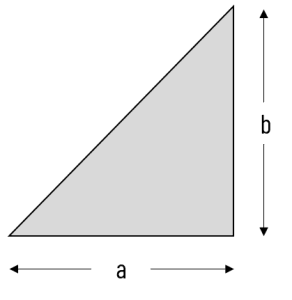

area of triangle

Area: (ab) / 2

Center: 2a/3

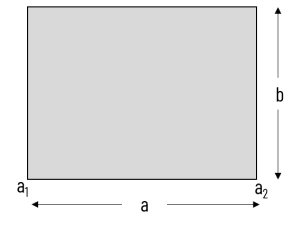

area of rectangle

Area: ab

Center: (a1 + a2) / 2

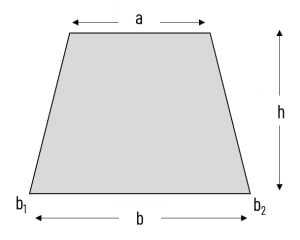

area of trapezoidal

Area: 1/2 (a + b) × h

Center: (b1 + b2) / 2

Center of Sums Method:

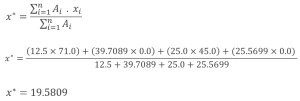

Defuzzification using Center of Sums (CoS) method can be derived as follow:

mamdani approach using CoS method
Area and Centroid of each region

Center of Gravity Method:

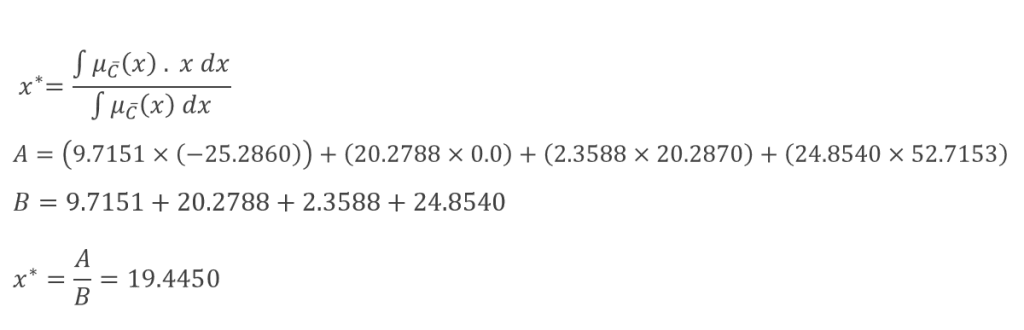

Defuzzification using the Center of Gravity (CoG) method can be derived as follow:

Center of Gravity (CoG)
Division of area in the non-overlapping region.

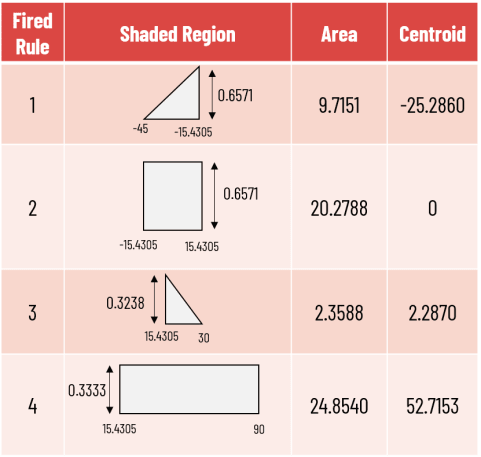

The area and center of each region are depicted in the following figure:

mamdani approach using CoG method
Area and Centroid of each region

Middle of Maxima Method:

Defuzzification using the Maxima method can be derived as follow:

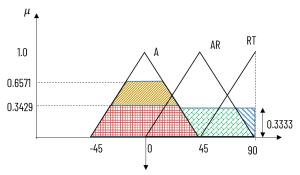

Middle of maxima returns the middle of the area having the highest membership value

mamdani approach
Middle of maxima

For this, x = 0
