# Fuzzy relation – Definition, types and operations

## Cartesian product

Fuzzy relation defines the mapping of variables from one fuzzy set to another. Like crisp relation, we can also define the relation over fuzzy sets.

Let A be a fuzzy set on universe X and B be a fuzzy set on universe Y, then the Cartesian product between fuzzy sets A and B will result in a fuzzy relation R which is contained with the full Cartesian product space or it is subset of cartesian product of fuzzy subsets. Formally, we can define fuzzy relation as,

R = A x B

and

R ⊂ (X x Y)

where the relation R has membership function,

μ_{R}(x, y) = μ_{A x B}(x, y) = min( μ_{A}(x), μ_{B}(y) )

A binary fuzzy relation R(X, Y) is called **bipartite graph **if X ≠ Y.

A binary fuzzy relation R(X, Y) is called **directed graph** or **digraph** if X = Y. , which is denoted as R(X, X) = R(X^{2})

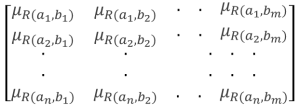

Let A = {a_{1}, a_{2}, …, a_{n}} and B = {b_{1}, b_{2}, .., b_{m}}, then fuzzy relation between A and B is described by the **fuzzy relation matrix **as,

We can also consider fuzzy relation as a mapping from the cartesian space (X, Y) to the interval [0, 1]. The strength of this mapping is represented by the membership function of the relation for every tuple μ_{R}_{(x, y)}

**Example:**

Given A = { (a_{1}, 0.2), (a_{2}, 0.7), (a_{3}, 0.4) } and B = { (b_{1}, 0.5), (b_{2}, 0.6)}, find the relation over A x B

## Fuzzy relation

Fuzzy relations are very important because they can describe interactions between variables.

**Example:** A simple example of a binary fuzzy relation on X = {1, 2, 3}, called ”approximately equal” can be defined as

R(1, 1) = R(2, 2) = R(3, 3) = 1

R(1, 2) = R(2, 1) = R(2, 3) = R(3, 2) = 0.8

R(1, 3) = R(3, 1) = 0.3

The membership function and relation matrix of R is given by

bar{R}(x, y) = begin{cases} 1, & if x = y \ 0.7, & if |x-y| = 1 \ 0.3, & if |x-y| = 2 end{cases}

## Operations on fuzzy relation:

For our discussion, we will be using following two relation matrices:

### Union:

R ∪ S = { (a, b), μ_{A ∪ B}(a, b) }

μ_{R ∪ S}(a, b) = max( μ_{R}(a, b), μ_{S}(a, b))

μ_{R ∪ S}(x_{1}, y_{1}) = max( μ_{R}( x_{1}, y_{1} ), μ_{S}( x_{1}, y_{1} ))

= max(0.8, 0.4) = 0.8

μ_{R ∪ S}(x_{1}, y_{2}) = max( μ_{R}( x_{1}, y_{2} ), μ_{S}( x_{1}, y_{2} ))

= max(0.1, 0.0) = 0.1

μ_{R ∪ S}(x_{1}, y_{3}) = max( μ_{R}( x_{1}, y_{3} ), μ_{S}( x_{1}, y_{3} ))

= max(0.1, 0.9) = 0.9

μ_{R ∪ S}(x_{1}, y_{4}) = max( μ_{R}( x_{1}, y_{4} ), μ_{S}( x_{1}, y_{4} ))

max(0.7, 0.6) = 0.7

.

.

.

μ_{R ∪ S}(x_{3}, y_{4}) = max( μ_{R}( x_{3}, y_{4} ), μ_{S}( x_{3}, y_{4} ) )

= max(0.8, 0.5) = 0.8

Thus, the final matrix for union operation would be,

### Intersection:

R ∩ S = { (a, b), μ_{A ∩ B}(a, b) }

μ_{R ∩ S}(a, b) = min( μ_{R}(a, b), μ_{S}(a, b) )

μ_{R ∩ S}(x_{1}, y_{1}) = min( μ_{R}( x_{1}, y_{1} ), μ_{S}( x_{1}, y_{1} ) )

= min(0.8, 0.4) = 0.4

μ_{R ∩ S}(x_{1}, y_{2}) = min( μ_{R}( x_{1}, y_{2} ), μ_{S}( x_{1}, y_{2} ) )

= max(0.1, 0.0) = 0.0

μ_{R ∩ S}(x_{1}, y_{3}) = min( μ_{R}( x_{1}, y_{3} ), μ_{S}( x_{1}, y_{3} ) )

= max(0.1, 0.9) = 0.1

μ_{R ∩ S}(x_{1}, y_{4}) = min( μ_{R}( x_{1}, y_{4} ), μ_{S}( x_{1}, y_{4} ) )

max(0.7, 0.6) = 0.6

.

.

.

μ_{R ∩ S}(x_{3}, y_{4}) = min( μ_{R}( x_{3}, y_{4} ), μ_{S}( x_{3}, y_{4} ) )

= max(0.8, 0.5) = 0.5

### Complement:

R^{c} = { (a, b), μ_{R}^{c}(a, b) }

μ_{R}^{c}(a, b) = 1 – μ_{R}(a, b)

μ_{R}^{c}(x_{1}, y_{1}) = 1 – μ_{R}(x_{1}, y_{1}) = 1 – 0.8 = 0.2

μ_{R}^{c}(x_{1}, y_{2}) = 1 – μ_{R}(x_{1}, y_{2}) = 1 – 0.1 = 0.9

μ_{R}^{c}(x_{1}, y_{3}) = 1 – μ_{R}(x_{1}, y_{3}) = 1 – 0.1 = 0.9

.

.

μ_{R}^{c}(x_{3}, y_{4}) = 1 – μ_{R}(x_{3}, y_{4}) = 1 – 0.8 = 0.2

The complement of relation R would be,

### Projection:

**The projection of bar{R} on X :**

∏_{X}(x) = sup( R(x, y) | y ∈ Y)

**The projection of bar{R} on Y : **

∏_{Y}(y) = sup( R(x, y) | x ∈ X)

sup: Supremum of the set

**The projection of R on X :**

∏_{X}(x_{1}) = 0.8

∏_{X}(x_{2}) = 0.8

∏_{X}(x_{3}) = 1.0

**The projection of R on Y :**

∏_{Y}(y_{1}) = 0.9

∏_{Y}(y_{2}) = 1.0

∏_{Y}(y_{3}) = 0.7

∏_{Y}(y_{4}) = 0.8

## Watch on YouTube: Fuzzy relation

### Fuzzy composition:

**Fuzzy composition **can be defined just as it is for crisp (binary) relations. Suppose R is a fuzzy relation on X × Y, S is a fuzzy relation on Y × Z, and T is a fuzzy relation on X × Z; then,

**Fuzzy Max–Min composition **is defined as:

T = R ∘ S = μ_{T}(x, z) = begin{matrix} vee\ y in Y end{matrix} ( μ_{R}(x, y) ∨ μ_{S}(y, z) )

= begin{matrix} max \ y in Y end{matrix} ( min ( μ_{R}(x, y) ∨ μ_{S}(y, z) ) )

**Fuzzy Max–Product composition **is defined as:

T = R ∘ S = μ_{T}(x, z) = begin{matrix} vee\ y in Y end{matrix} ( μ_{R}(x, y) ∙ μ_{S}(y, z) )

= begin{matrix} max \ y in Y end{matrix} ( ( μ_{R}(x, y) ∙ μ_{S}(y, z) ) )

## Test Your Knowledge:

Find max-Min composition and Max-Product composition for above given fuzzy relations

**Please post your answer / query / feedback in comment section below !**
